Your glass becomes private the moment you need it to
Smart film is a switchable privacy film applied to glass you already own. PDLC technology moves it between transparent and opaque from a wall switch, a remote, an app, or your automation system.
At Vision Guard we install heat-control adhesive film that adds privacy, style and a modern finish to windows and glass walls — homes, offices and commercial buildings across Riyadh.
As a service provider and wholesale distributor in Riyadh, Saudi Arabia, we supply switchable PDLC film from established manufacturers in Japan and China, backed by a 2-year warranty.
Retrofit
Smart film
Adhesive PDLC film applied to the inner face of existing glass.
- Best for
- Offices, villas and shops already built
- Glass
- Stays exactly where it is
Laminated
Smart glass
A PDLC layer sealed inside a glass sandwich at the factory.
- Best for
- New builds, facades, external glazing
- Glass
- Replaced with the finished unit
Vision Guard supplies both. For most projects in Riyadh, retrofit film is the faster and more affordable route — your glass never leaves the frame.
How the technology works
Four parts. That is the entire system.
01
PDLC film
Bonded to the inner face of your glass.
02
Power supply
Converts 220V mains down to safe low-voltage AC.
03
Bus bars & wiring
Hidden inside the frame or channel.
04
Control device
From a simple wall switch to your voice assistant.
Try the switch
Switching happens in under 10 milliseconds. Nobody in the room sees a fade or a delay — which is why this demo has none either.
Performance and technical specifications
Published numbers, because consultants cannot specify a product without them
Most competitor pages skip this section. Architects, MEP consultants and procurement teams need real figures, so here they are.
Light transmission
Optical| Property | On — clear | Off — private |
|---|---|---|
| Visible light transmittance | 75–82% | 50–60% |
| Haze | Under 5% | Above 90% |
| UV rejection | Up to 99% | Up to 99% |
| Infrared rejection | 40–55% | 40–55% |
| Switching speed | <10 ms | <10 ms |
The opaque state still lets daylight through. It blocks the view, not the light — which is why rooms behind smart film never feel like closed boxes.
Physical parameters
Material| Total thickness | 0.38 – 0.45 mm |
|---|---|
| Maximum roll width | 1500 mm |
| Maximum panel length | 3000 mm |
| Weight | Approx. 500 g per m² |
| Adhesive type | Optically clear, pressure-sensitive |
| Standard colour | Milky white — grey and blue to order |
| Cutting tolerance | ±2 mm |
Panels wider than 1500 mm need a seam. Our installers plan seam lines along mullions or joinery so they read as part of the design rather than a flaw.
Electrical parameters
Power| Working voltage | 48 – 65V AC |
|---|---|
| Frequency | 50 – 60 Hz |
| Power consumption | 4 – 6 W per m² |
| Current draw | Under 0.3 A per m² |
| Standby (opaque) | 0 W |
| Certification | CE, RoHS |
A 10 m² partition draws roughly 50 watts when clear — less than a ceiling fan — and nothing at all while private.
Environmental parameters
Durability| Operating temperature | −10°C to 60°C |
|---|---|
| Storage temperature | −20°C to 70°C |
| Operating humidity | Under 80% RH |
| Service life | 10 years or more |
| Switching cycles | Over 1,000,000 |
| Warranty | 2 years |
Riyadh summers matter here. Unshaded sun on west-facing external glazing can push surface temperature past the safe range, so we recommend retrofit film for interior glass and laminated smart glass for exposed facades.
One million switching cycles. Ten years of service life. Zero watts while private.
Every installation carries a 2-year Vision Guard warrantyControl options
Smart film is only as good as the way you switch it
Simple switch
A single rocker or touch panel on the wall. No app, no pairing, no learning curve.
Smartphone
Individual panels or grouped zones from iOS and Android. One app handles bedrooms, bathrooms and the majlis separately.
Remote control
RF remotes work through walls and joinery. Ideal for high partitions and glass with no nearby switch position.
Lutron integration
Wired into the same keypads and scenes. One button dims the lights, closes the shades and privatises the glass together.
We also add timers, occupancy sensors and door-contact triggers where they make sense. A bathroom that turns private the moment the door closes is a small detail people remember.
Installation process
Less disruptive than clients expect
Site survey and glass assessment
We measure every pane, check glass type and thickness, and confirm the film will bond correctly. Laminated, tempered and single-pane glass all behave differently.
Electrical planning
We agree switch positions and the route for concealed wiring, then coordinate with your electrician or ours.
Precision cutting
Film is cut to your exact measurements within 2 mm, including cut-outs for handles, patches and locks.
Surface preparation
Glass is stripped of old film, cleaned and de-greased. Dust is the single biggest cause of a poor finish, so this stage takes time.
Application and squeegee
Film is wet-applied and squeegeed out to remove air and solution. Bus bar edges are sealed and tucked into the frame.
Wiring and commissioning
The transformer is mounted, controls are connected, and we test every switching cycle in front of you.
Curing and handover
Slight haze during curing is normal and clears within 2 to 5 days. We hand over care instructions and the warranty document.
Benefits
What clients notice after the first week
Privacy at your fingertips
Switch glass from transparent to opaque in a fraction of a second. No blinds, no partitions, no cords.
Protection from UV
Filters up to 98% of ultraviolet light, protecting furniture and flooring from sun damage.
Space-saving design
A clean, minimalist interior. Natural light stays; heavy drapes and roller blinds go.
Smart home compatible
Operates from a wall switch, remote or voice command, integrated with your automation system.
Energy efficiency
Acts as a thermal barrier, reducing heat transfer so air conditioning works less hard.
Quality and service
From consultation to installation, handled by our own trained technicians and backed in writing.
Applications
Where switchable film earns its place
Residential
Villas and apartments
- Smart bathroom glassShower screens and partitions that turn opaque on entry, bright and open the rest of the day.
- Bedrooms and dressing roomsPrivacy on demand without heavy blackout curtains.
- Majlis dividersSeparate family and guest areas instantly.
- Staircases and skylightsDaylight without exposure to neighbouring buildings.
- Home cinemaOpaque for screening, clear for daytime use.
- Home officesA professional backdrop for video calls at the touch of a button.
Parents mention a benefit we did not expect: no cords hanging from blinds, which removes a real hazard for small children.
Commercial
Offices, clinics, retail and hospitality

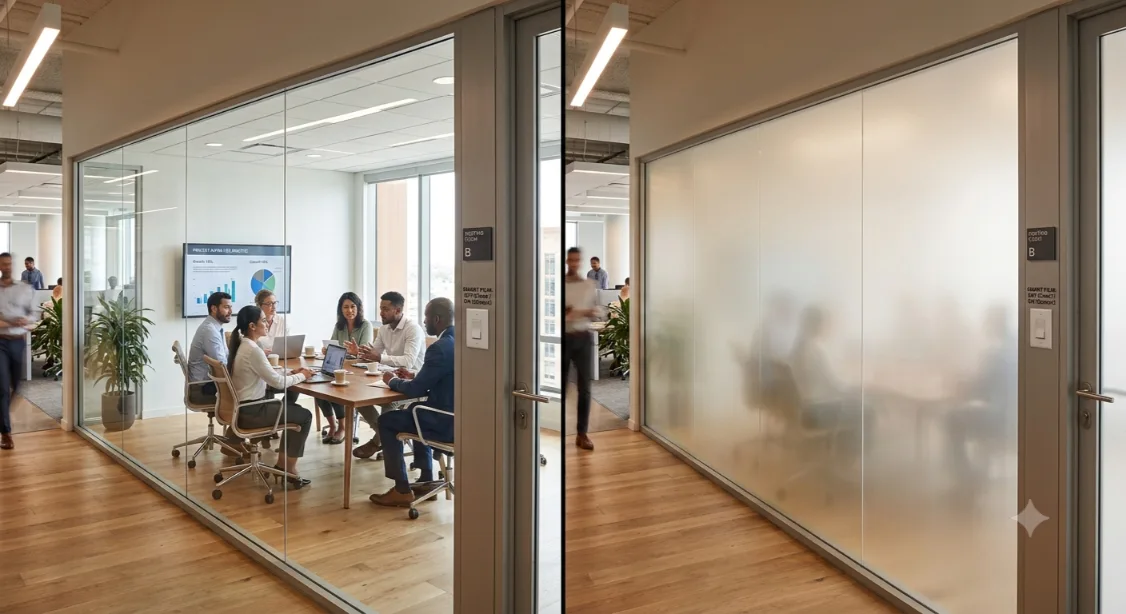

- Smart office glassOpen-plan layouts that convert to private zones without building walls.
- Meeting roomsConfidentiality during board meetings, transparency the rest of the week.
- Clinics and hospitalsPatient privacy with a wipe-clean surface that suits infection-control policy.
- Banks and government officesSecure discussion rooms and teller partitions.
- Retail and showroomsWindows that switch from display to blank canvas, doubling as a rear-projection screen.
- Hotels and restaurantsPartitions that make compact suites feel larger, private dining created in seconds.
A frequently missed advantage: smart film can be reconfigured. A drywall partition is permanent. Glass with switchable film adapts as your floor plan changes.
Why Vision Guard
The right installer in Riyadh
We don't only sell and install film. We deliver PDLC solutions that bring privacy, protection and modern design together — from our base in Al Malaz, Riyadh, serving projects across the Kingdom.
- Film sourced from established Japanese and Chinese manufacturers, never unbranded stock
- Installations completed by our own trained team, not subcontracted labour
- 2-year warranty covering film performance and switching function
- Wholesale supply for contractors, fit-out companies and glass suppliers across Saudi Arabia
- Published technical specifications so consultants can specify with confidence
- After-sales support and maintenance handled directly by us
Areas we serve
Installing across Riyadh and the wider Kingdom
Our workshop and team are based in Al Malaz, Riyadh. Riyadh jobs are usually surveyed within 48 hours and installed the same week. Projects outside the capital are scheduled as site visits, with wholesale film shipped anywhere in Saudi Arabia.
Riyadh districts
Same-week installResidential villas, offices, clinics and retail units across the city.
Across Saudi Arabia
Scheduled site visitsSupply and installation for larger contracts, plus wholesale distribution to contractors and glass suppliers.
Do not see your district listed? We cover the whole of Riyadh, and the list above is only the areas we work in most often. Send us the address and we will confirm scheduling.
Frequently asked
Questions we get before every survey
Does smart film need my glass to be replaced?
No. Retrofit PDLC film is applied to your existing glass. Only external facade projects usually require laminated smart glass instead.
Is smart film see-through when the power is off?
No. In the off state it is opaque white and completely blocks the view. Daylight still passes through, so the room stays bright.
How much electricity does smart film use?
Around 4 to 6 watts per square metre while clear, and zero while opaque. A 10 m² partition uses less power than a standard light fixture.
How much does smart film cost in Riyadh?
Price depends on total area, panel sizes, glass condition and the chosen control system. Vision Guard provides a fixed quotation after a free site survey. Call +966 55 503 3542 for a same-day estimate.
How long does smart film last?
Ten years or more, rated for over one million switching cycles. Every Vision Guard installation carries a 2-year warranty.
Can smart film connect to my smart home?
Yes. It works with your smart home system using a wall switch, remote or voice control, and integrates with Lutron keypads and scenes.
Does smart film block UV and heat?
Yes. It blocks up to 98% of UV rays and rejects 40 to 55% of infrared, keeping interiors cooler and protecting furnishings from fading.
Where can smart film be used?
Interior glass in homes, offices, hospitals and shops across Riyadh and the wider Kingdom. External glazing is better served by laminated smart glass.
Our services
Tell us about your glass
Send measurements or just a photo. We will tell you whether retrofit film or laminated smart glass suits the project, and quote it after a free site survey.
- Professional installationExpert fitting of PDLC film on all glass types, for optimal performance and finish.
- Wholesale distributionHigh-quality smart film supplied to retailers and contractors across Riyadh.
- After-sales supportOngoing assistance and maintenance for the life of the installation.
Your Glass Becomes Private the Moment You Need It To
Smart Film is a switchable privacy film that can be applied to existing glass surfaces. It uses PDLC (Polymer Dispersed Liquid Crystal) technology to switch between transparent and opaque modes with the flip of a switch, remote control, or even automation systems.
At Vision Guard, we install heat control adhesive film that adds privacy, style, and a modern touch to your windows and glass walls. Whether for homes, offices, or commercial buildings in Riyadh, our smart glass film offers instant privacy control with a sleek, modern finish.
As a trusted service provider and wholesale distributor in Riyadh, Saudi Arabia, we supply advanced switchable PDLC films imported from leading manufacturers in Japan and China. Our products come with a reliable 2-year warranty, ensuring both quality and peace of mind.
Format | What it is | Best for |
Smart film (retrofit) | Adhesive PDLC film applied to existing glass | Offices, villas and shops already built |
Smart glass (laminated) | PDLC layer sealed inside a glass sandwich at the factory | New builds, facades, external glazing |
Vision Guard supplies both. For most projects in Riyadh, retrofit smart film is the faster and more affordable route because your glass stays where it is.
How the Technology Works
The full system has four parts. That is all.
- The PDLC film bonded to the inner face of your glass
- A power supply/transformer that converts 220V mains down to safe low voltage AC
- Bus bars and wiring hidden inside the frame or channel
- A control device, from a simple wall switch to your voice assistant
OFF state: liquid crystals are scattered, light diffuses, glass reads as opaque white. Privacy is on.
ON state: crystals align, light travels through in a straight path, glass reads as clear. View is restored.
Switching happens in under 10 milliseconds. Nobody in the room will see a fade or a delay.
Smart Film Performance and Technical Specifications
Most competitor pages skip this section. We publish it because architects, MEP consultants, and procurement teams need real numbers before they can specify a product.
Light Transmission
Property | Powered ON (clear) | Powered OFF (private) |
Visible light transmittance | 75% to 82% | 50% to 60% |
Haze | Under 5% | Above 90% |
UV rejection | Up to 99% | Up to 99% |
Infrared rejection | 40% to 55% | 40% to 55% |
Switching speed | Under 10 milliseconds | Under 10 milliseconds |
Note that the opaque state still lets daylight through. It blocks the view, not the light, which is exactly why rooms behind smart film never feel like closed boxes.
Physical Parameters
Property | Specification |
Total thickness | 0.38 mm to 0.45 mm |
Maximum roll width | 1500 mm |
Maximum single panel length | 3000 mm |
Weight | Approx. 500 g per m² |
Adhesive type | Optically clear pressure-sensitive |
Standard colour | Milky white (grey and blue available on order) |
Cutting tolerance | ±2 mm |
Panels larger than 1500 mm wide need a seam. Our installers plan seam lines along mullions or joinery so they read as part of the design rather than a flaw.
Electrical Parameters
Property | Specification |
Working voltage | 48V to 65V AC |
Frequency | 50 Hz to 60 Hz |
Power consumption | 4 W to 6 W per m² |
Current draw | Under 0.3 A per m² |
Standby (opaque) consumption | 0 W |
Certification | CE, RoHS compliant |
A 10 m² glass partition draws roughly 50 watts when clear. That is less than a ceiling fan, and it uses nothing at all while private.
Environmental Parameters
Property | Specification |
Operating temperature | -10°C to 60°C |
Storage temperature | -20°C to 70°C |
Operating humidity | Under 80% RH |
Service life | 10 years or more |
Switching cycles | Over 1,000,000 |
Warranty | 2 years (Vision Guard) |
Riyadh summers matter here. Direct, unshaded sun on west-facing external glazing can push surface temperature past the safe range, so we recommend retrofit film for interior glass and laminated smart glass for exposed facades. We will tell you which one your project needs during the survey.
A Multitude of Control Options
Smart film is only as good as the way you switch it. Vision Guard installs and configures all of the following.
Simple Switch
A single rocker or touch panel on the wall. No app, no pairing, no learning curve. The default choice for clinics, classrooms and rental units.
Smartphone
Control individual panels or grouped zones from iOS and Android. Useful in villas where one app handles bedrooms, bathrooms and the majlis separately.
Remote Control
RF remotes work through walls and joinery. Ideal for high partitions and glass with no nearby switch position.
Lutron Integration
For projects already running Lutron lighting and shading, we wire smart film into the same keypads and scenes. One button can dim the lights, close the shades, and privatise the glass together.
We also add timers, occupancy sensors, and door-contact triggers where they make sense. A bathroom that turns private the moment the door closes is a small detail people remember.
Smart Film Installation Process
Retrofit smart glass film installation is far less disruptive than clients expect. Here is exactly how we work.
- Site survey and glass assessment. We measure every pane, check the glass type and thickness, and confirm the film will bond correctly. Laminated, tempered, and single-pane glass all behave differently.
- Electrical planning: We agree switch positions and the route for concealed wiring, then coordinate with your electrician or ours.
- Precision cutting: Film is cut to your exact measurements with a 2 mm tolerance, including cut-outs for handles, patches and locks.
- Surface preparation: The glass is stripped of old film, cleaned and de-greased. Dust is the single biggest cause of a poor finish, so this stage takes time.
- Application and squeegee: The film is wet-applied and squeegeed out to remove air and solution. Bus bar edges are sealed and tucked into the frame.
- Wiring and commissioning: The transformer is mounted, controls are connected, and we test every switching cycle in front of you.
- Curing and handover: Slight haze during curing is normal and clears within 2 to 5 days. We hand over care instructions and the warranty document.
Typical timeline: a single meeting room takes 3 to 5 hours. A full villa is usually one to two days.
Benefits of Installing Smart Film for Glass Privacy
- Privacy at Your Fingertips
Our electrical switchable adhesive film lets you instantly change your glass from transparent to opaque. Whether you’re holding a confidential meeting or want more privacy at home, the glass transitions smoothly in a fraction of a second — no need for blinds or partitions.
- Protection Against Harmful UV Rays
The laminated switchable film we provide doesn’t only enhance privacy; it also shields you from harmful UV rays and excessive heat. By filtering out up to 98% of ultraviolet light, it helps protect your interior furniture and flooring from sun damage while maintaining a comfortable indoor environment.
- Space-Saving Design
Our privacy film and switchable glass solutions give your interior a clean, minimalist look. Forget about heavy drapes or roller blinds — our films maintain natural light while delivering a high-end, futuristic feel that complements modern architecture and interior design trends.
- Smart Home Compatibility
Vision Guard adhesive films can work with your smart home system for effortless control. You can operate the film via a wall switch, remote control, or even voice command — integrating privacy and style into your home automation system.
- Energy-Saving Efficiency
The PDLC adhesive film acts as a thermal barrier, helping to reduce heat transfer and maintain indoor comfort. This means your air conditioning doesn’t have to work as hard, lowering electricity bills and promoting energy efficiency, perfect for sustainable living and commercial energy management.
- Reliable Quality and Professional Service
From initial consultation to film installation, our expert technicians ensure precision, safety, and durability. Every film project is backed by tested performance and a quality guarantee — giving you peace of mind that your investment will last for years.
Applications of Smart Film
Smart Film for Residential Homes
Villas and apartments across Riyadh use switchable film in ways that go well beyond simple privacy.
- Smart bathroom glass: shower screens and bathroom partitions that turn opaque on entry, keeping the room bright and open the rest of the day
- Bedrooms and dressing rooms: privacy on demand without heavy blackout curtains
- Smart villa glass: majlis dividers that separate family and guest areas instantly
- Staircases and skylights: daylight without exposure to neighbouring buildings
- Home cinema: switch to opaque for screening, clear for daytime use
- Home offices: a professional backdrop for video calls at the touch of a button
Parents often mention a benefit we did not expect. No cords are hanging from blinds, which removes a real hazard for small children.
Smart Film for Commercial Buildings
For commercial projects, smart film usually earns its cost back through space efficiency and compliance.
- Smart office glass: open-plan layouts that convert to private zones without building walls
- Smart meeting room glass: confidentiality during board meetings, transparency the rest of the week
- Clinics and hospitals: patient privacy in consultation rooms, with a wipe-clean surface that suits infection-control policy
- Banks and government offices: secure discussion rooms and teller partitions
- Retail and showrooms: shop windows that switch from display to blank canvas, and double as a rear-projection screen
- Hotels: bathroom and bedroom partitions that make compact suites feel larger
- Restaurants: private dining sections created and removed in seconds
A frequently missed advantage: smart film can be reconfigured. A drywall partition is a permanent decision. Glass with switchable film adapts as your floor plan changes.
Why Vision Guard Is the Right Installer in Riyadh
When it comes to upgrading your glass surfaces, Vision Guard stands out as one of the leading names for film installation in Riyadh. We don’t just sell and install films — we deliver innovative PDLC smart film solutions that bring privacy, protection, and modern design together.
- Film sourced from established Japanese and Chinese manufacturers, never unbranded stock
- Installations completed by our own trained team, not subcontracted labour
- 2-year warranty covering film performance and switching function
- Wholesale supply available for contractors, fit-out companies and glass suppliers across Saudi Arabia
- Published technical specifications so that consultants can specify with confidence
- After-sales support and maintenance handled directly by us
We are based in Al Malaz, Riyadh, and we serve projects across the Kingdom.
FAQ'S
1. What is the use of smart film?
Privacy film lets you switch glass from transparent to opaque, offering instant privacy while blocking harmful UV rays and heat.
2. Is smart film easy to install?
Yes. It can be applied directly to existing glass without replacement. Our experts sell and install PDLC films quickly and cleanly.
3. Can smart film connect to my smart home?
Yes. It can work with your smart home system using a wall switch, remote, or voice control for easy operation.
4. Does smart film block UV and heat?
Absolutely. It blocks up to 98% of UV rays and reduces heat, keeping interiors cooler and more comfortable.
5. Where can smart film be used?
It suits interior glass in homes, offices, hospitals, and shops across Riyadh, Saudi Arabia.
6. How much does smart film cost in Riyadh?
Price depends on the total area, panel sizes, glass condition, and the chosen control system. Vision Guard provides a fixed quotation after a free site survey. Call +966 55 503 3542 for a same-day estimate.
Does smart film need my glass to be replaced? No. Retrofit PDLC film is applied to your existing glass. Only external facade projects usually require laminated smart glass instead.
Is smart film see-through when the power is off? No. In the off state, it is opaque white and completely blocks the view. Daylight still passes through, so the room stays bright.
How much electricity does smart film use?
Around 4 to 6 watts per square metre while clear, and zero while opaque. A 10 m² partition uses less power than a standard light fixture.
How long does smart film last?
Ten years or more, rated for over one million switching cycles. Vision Guard covers every installation with a 2-year warranty.
Our Services Include:
Professional Installation: Expert fitting of PDLC films on various glass surfaces, ensuring optimal performance and aesthetics.
Wholesale Distribution: Supplying high-quality smart films to retailers and contractors across Riyadh.
After-Sales Support: Ongoing assistance and maintenance to ensure long-term satisfaction with our products.
